| TECHNICAL PARAMETER | |||||
| Name | Unit | QTY | Name | Unit | Specification |
| Engine power | KW | 45 | Dimention(L*W*H) | mm | 3850*1600*1550 |
| Max Thrust | KN | 80 | Weight | T | 3.5 |
| Max Pull | KN | 80 | Drill rod | MM*M | Φ42*1.8 |
| Max Torque | N·M | 2300 | Rod Box Capacity | piece | 54 |
| Max Spindle speed | RPM | 220 | Max Dia of pullback pipe | MM | ≤Φ400 |
| Max pull/thrust speed | M/Min | 40 | Max construction length | M | ≤100 |
| Max mud flow rate | L/Min | 75 | Incidence Angle | o | 11~20 |
| Max mud pressure | Mpa | 6 | Climbing Angle | o | 15 |
| MAIN PARTS | MAIN CONFIGURATION | |
| Engine | Weichai | OPTIONAL:Auto Anchor |
| Main pump | SKS | |
| Main Valve | YOULI | |
| Manual Valve | EATON | |
| Rotation Motor | EATON | |
| Thrust Motor | MUD PUMP |
| NO. | Optional Configuration | Image |

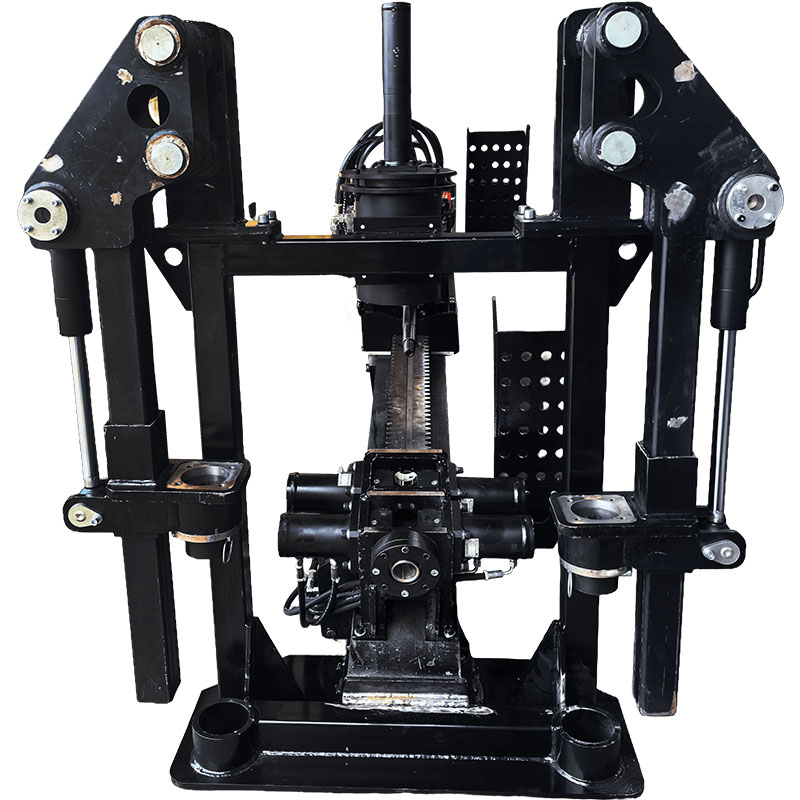

| ① | Auto-anchoring device |  |
