The main technical parameters
| Engine KW | KW | 179/2200 | Machine Size: | MM | 7200x2240x2450 |
| Max push force | KN | 400/800 | Host machine weight | T | about 11 |
| Max Pullback force | KN | 400/800 | Drill rod diameter | mm | φ83 |
| Max Torque | N.M | 18000 | Drill rod length | M | 3 |
| Max Power head speed | RPM | 160 | Max back tube diameter | MM | φ1350 |
| Power head highest Walking speed | m/min | 46 | Maximum lay length M (visual tube diameter and generic conditions) | M | ~800 |
| Mud pump flow | L/min | 450 | Incident angle | ° | 10 ~ 22 |
| Mud maximum pressure | MPa | 8 ± 0.5 | Climbing angle | ° | 15 |
Main components configuration list
| Engine QSB8.3-C240 Cummins |
| Rotating main pump 100 Danfoss |
| Push-pull main pump 75 PERMCO |
| Rotating motor MHP13 Poclian |
| Pull motor A6V107EZ2 Hetke |
| NO | PRODUCT | OPTIONAL | Image |

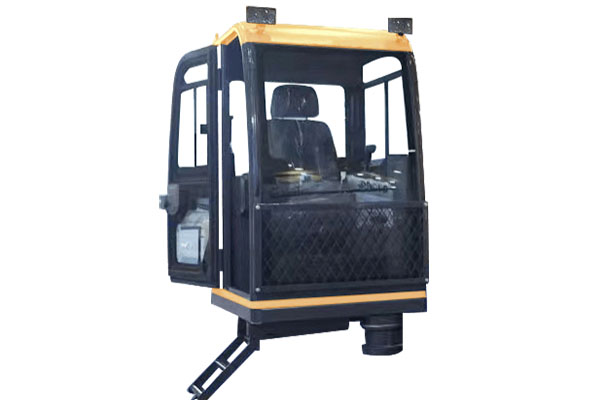

| ① | Rotating cabin( with AC ) | OPTIONAL |  |

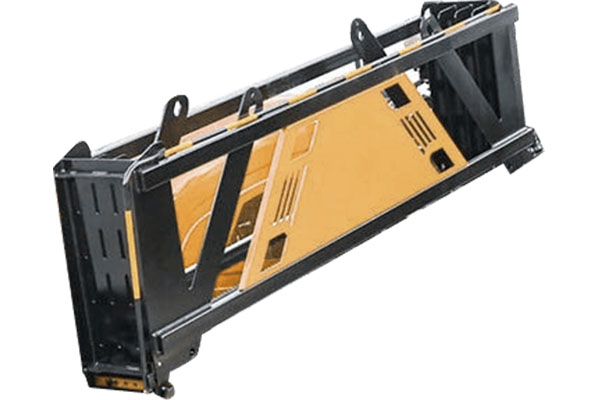

| ② | Auto-rod feeding mechanism | OPTIONAL |  |

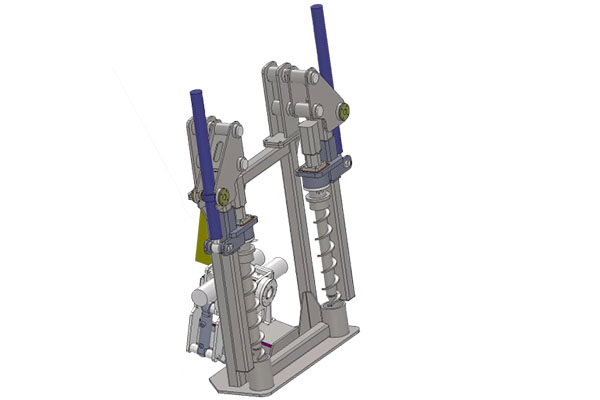

| ③ | Auto-anchoring device | OPTIONAL |  |

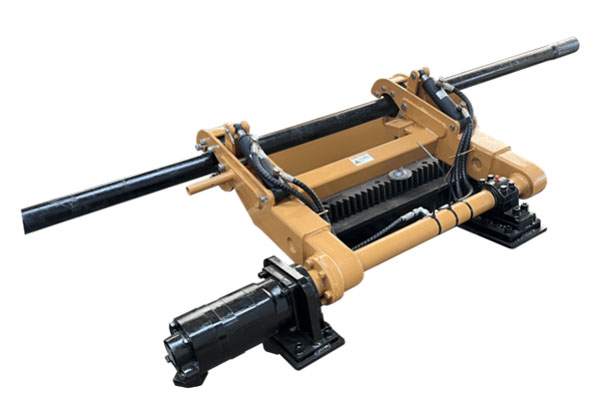

| ④ | Gripper | OPTIONAL |  |
