| Specifications | |||
| Engine power | KW | 194/2200 | remark |
| Max Thrust | KN | 430 | 860KN Optional |
| Max Pull | KN | 430 | 860KN Optional |
| Max Torque | N·M | 18500 | |
| Max Spindle speed | RPM | 140 | |
| Max pull/thrust speed | M/Min | 50 | |
| Max mud flow rate | L/Min | 450 | |
| Max mud pressure | Mpa | 8 | |
| Dimention(L*W*H) | mm | 7550x2300x2520 | |
| Weight | T | 13 | |
| Drill rod | MM*M | φ83 | |
| Rod Box Capacity | piece | 3 | |
| Max Dia of pullback pipe | MM | p900According to geology | |
| Max construction length | M | ||
| Incidence Angle | 11~20 | ||
| Climbing Angle | 14 | ||
| NO. | Optional Configuration | Image |

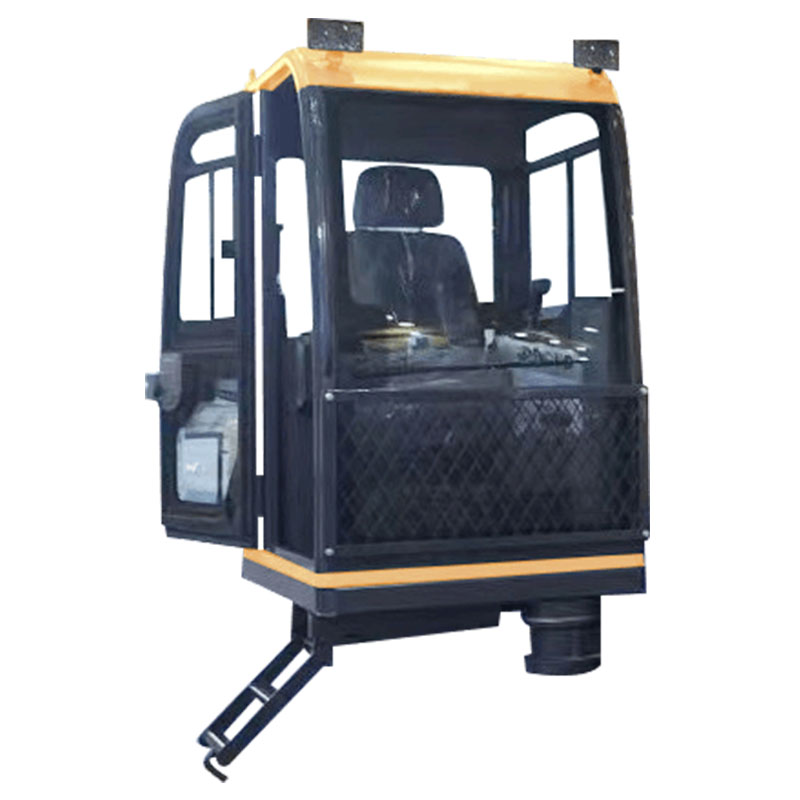

| ① | Rotating cabin(with AC) |  |

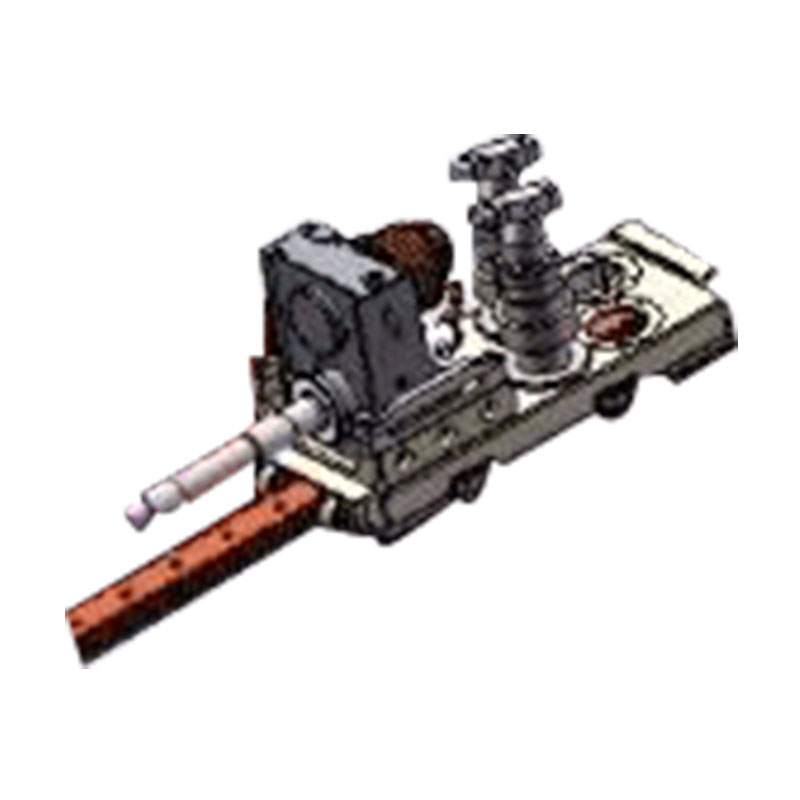

| ② | Auto-rod feeding mechanism |  |

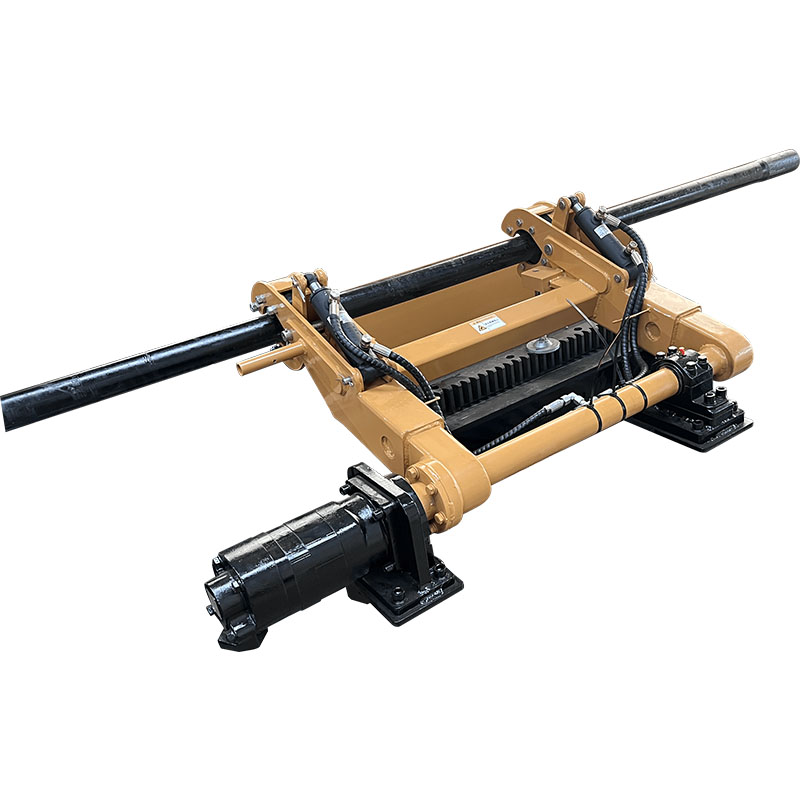

| ③ | Auto-anchoring device |  |

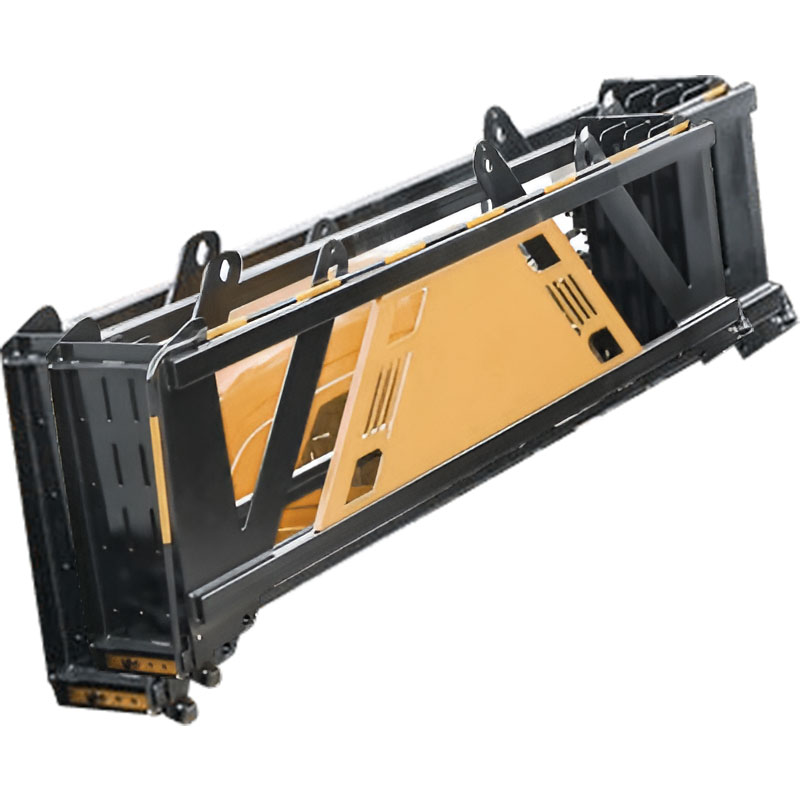

| ④ | APK700 Reinforcement device (Augmentation device) |  |

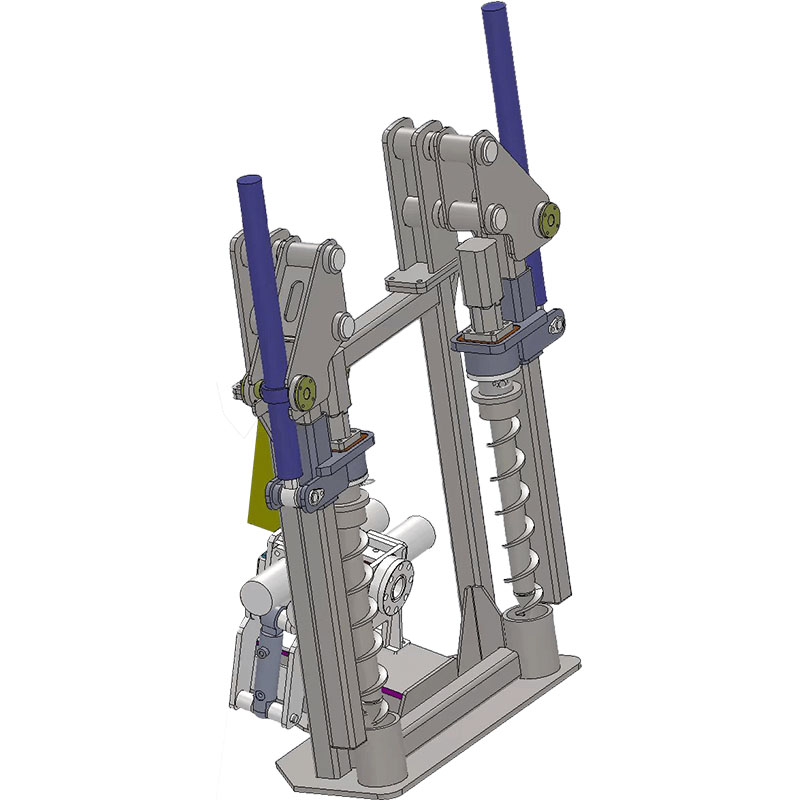

| ⑤ | Gripper |  |
